New Tank

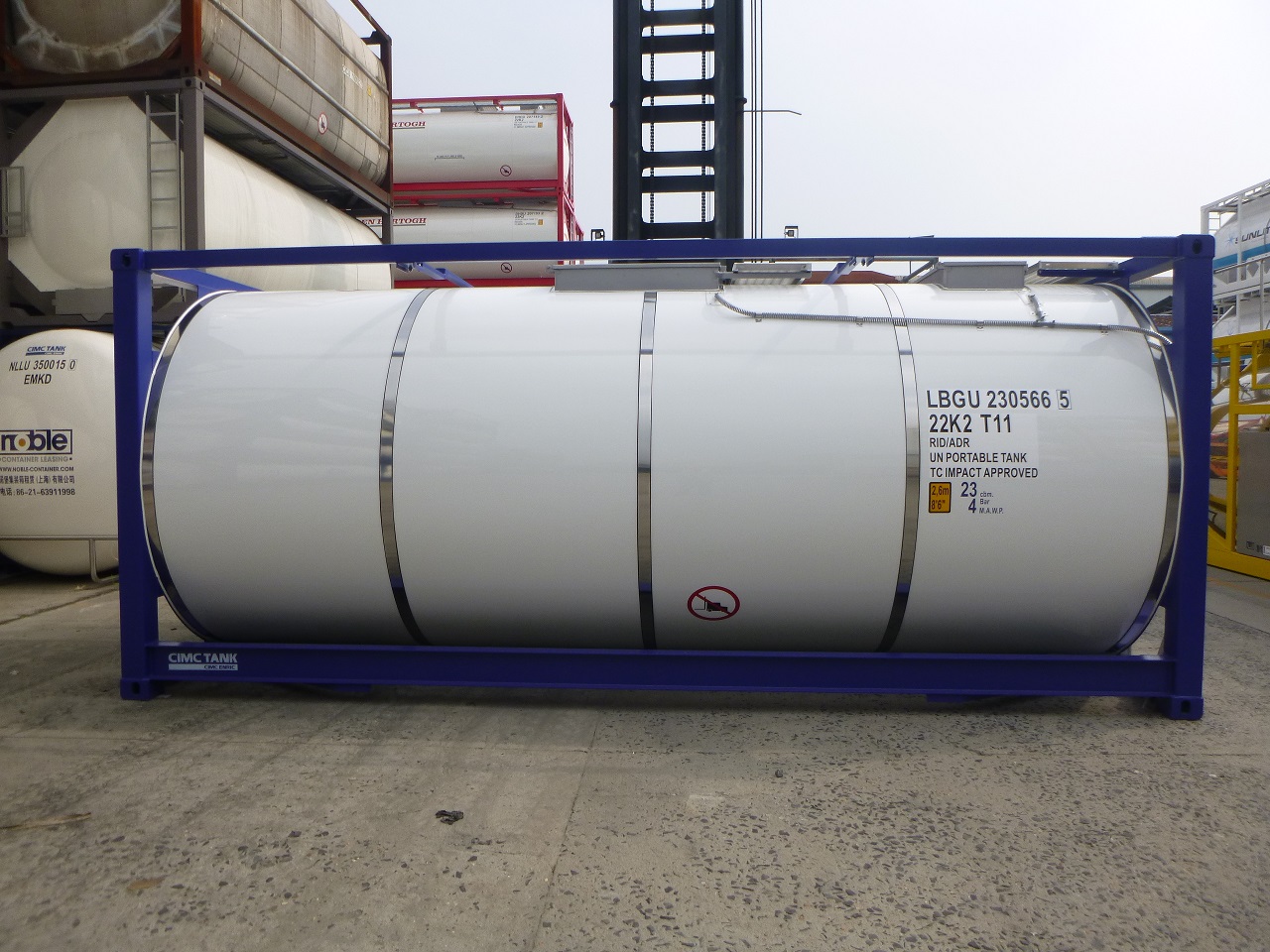

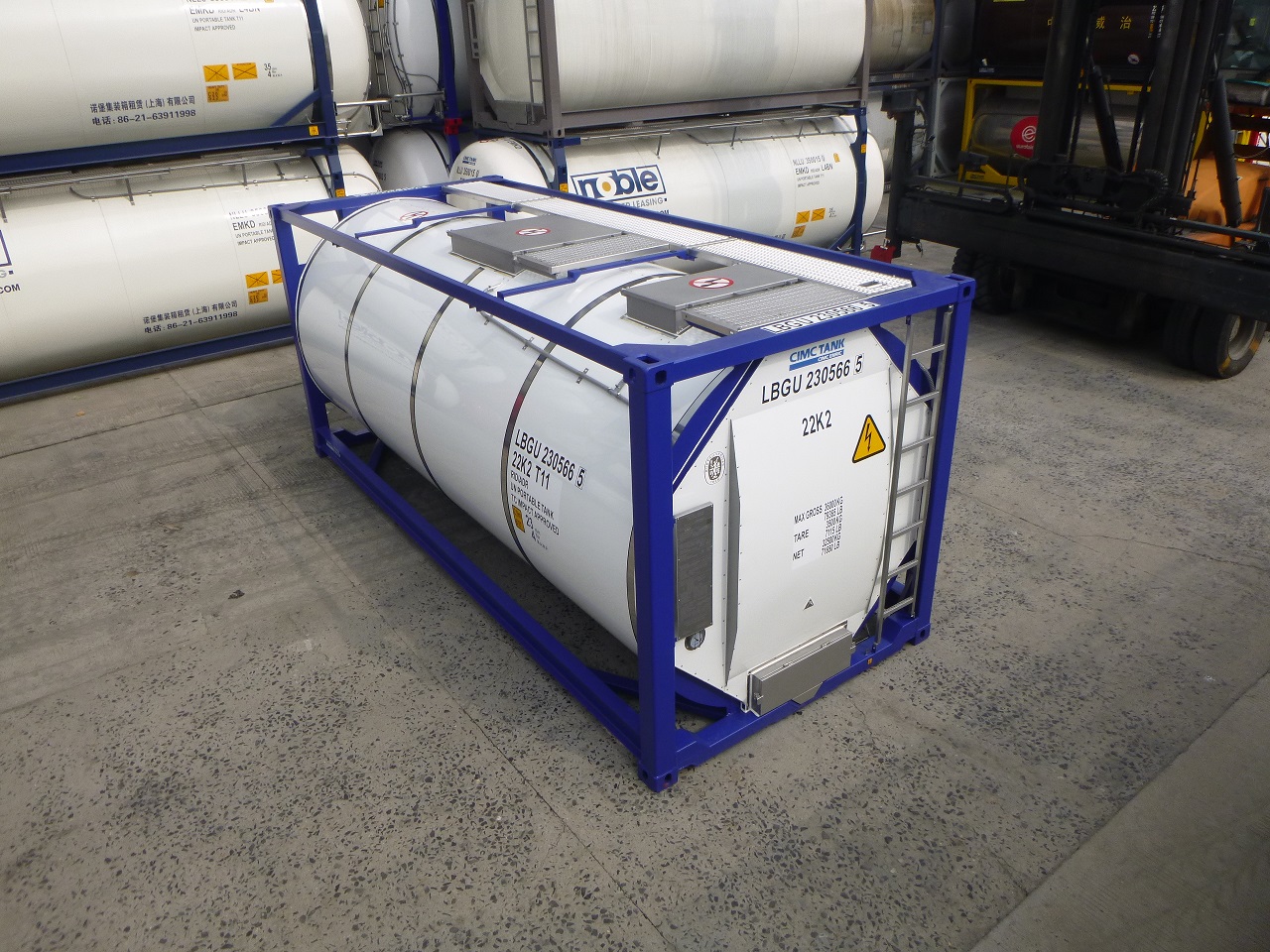

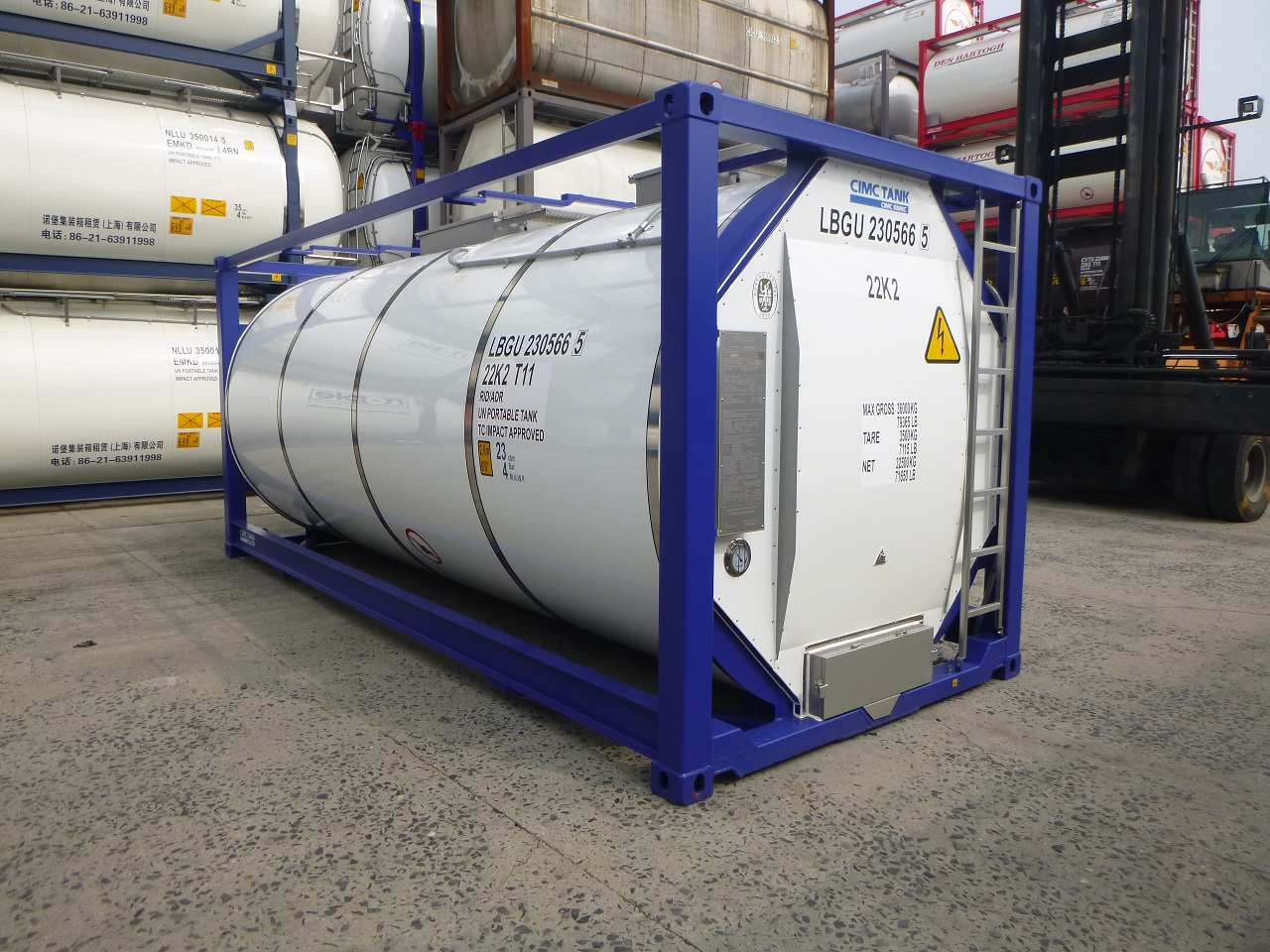

23KL ALUMINIUM CLADDING TANK CONTAINER
Load Cargo: Bromoethane, Bromopropane. Anhydrous; The maximum loading temperature is 30 degree C .
The tank needs to be filled with 0.5bar nitrogen or other suitable dry gas.
| Tank Type: | 20 feet Full Frame, UN Portable T11 Tank Container |
| Frame Size: | L6058mm，W2438mm，H2591mm |
| Capacity: | 23,000 litres (-1，+1.5%) |
| Tare Mass: | 3,500 kg (+/-3%) |
| Max Gross Mass: | 36,000 kg |
| Max Payload: | 32,500 kg |
| Max Allowable Working Pressure: | 4 bar |
| Test Pressure: | 6 bar |
| External Pressure: | 0.41 bar |
| Design Temp.: | -40°C to 130°C |
| Materials: | SANS 50028-71.4402, =316L，Carbon<=0.03% |
| Design Code: | ASME VIII Div 1 |
| Type Approvals: | IMDG, CFR49, RID/ ADR), US/DoT, UIC, TIR, CSC, TC |
| Classification Society: | BV, LR |
If you have any inquiry please Call 021-51860678, we will contact with you very soon.
