Reefer Tank Container with refrigeration unit system, suitable for the cargo with high temperature control requirements

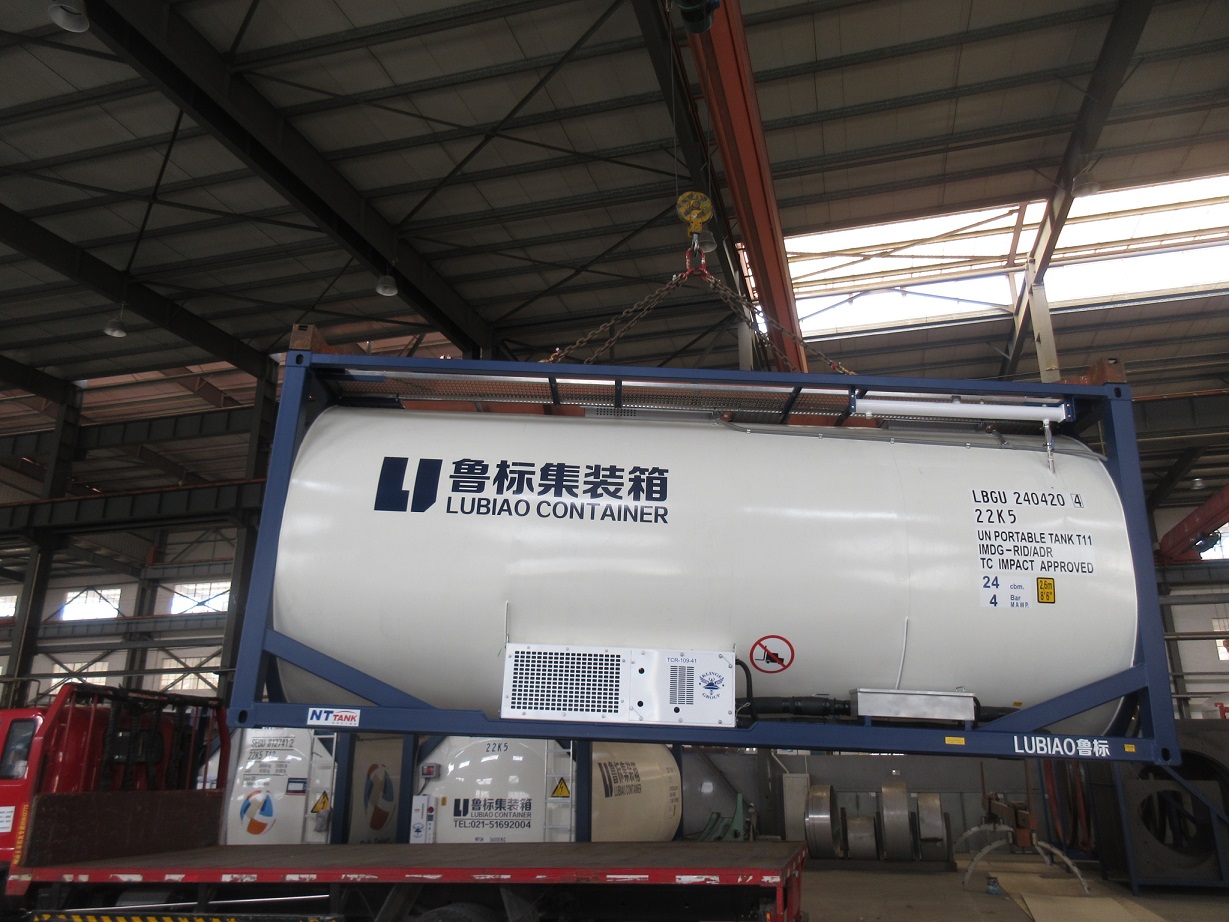

REEFER TANK CONTAINER

Its applicable to the cargo with high temperature control requirements to ensure the safety of cargo transportation.

Tank Type:	20 feet Full Frame, UN Portable T11 (with Refrigeration Unit)
Frame Size:	L6058mm，W2438mm，H2591mm
Capacity:	24,000 litres (-1，+2%)
Tare Mass:	4,100 kg (+/-3%)
Max Gross Mass:	36,000 kg
Max Payload:	31,900 kg
Max Allowable Working Pressure:	4 bar
Test Pressure:	6 bar
External Pressure:	0.41 bar
Design Temp.	-40°C to 130°C
Material:	SANS 50028-71.4402 =316L，Carbon<=0.03%
Design Code:	ASME VIII Div 1
Cooling Coil System:	14 longitudinal runs of cooling coil, 8 runs on the lower, and 6 runs on the upper half of the tank.

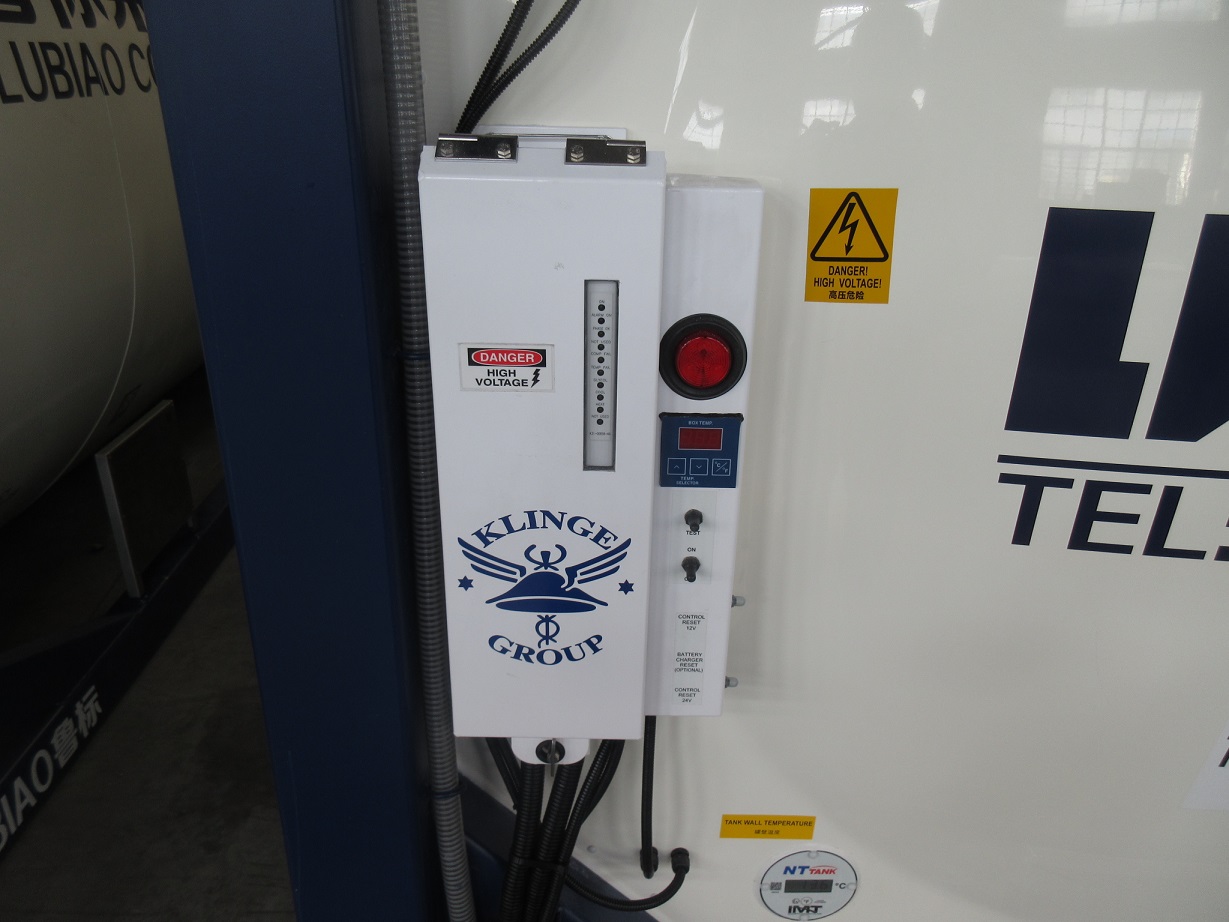

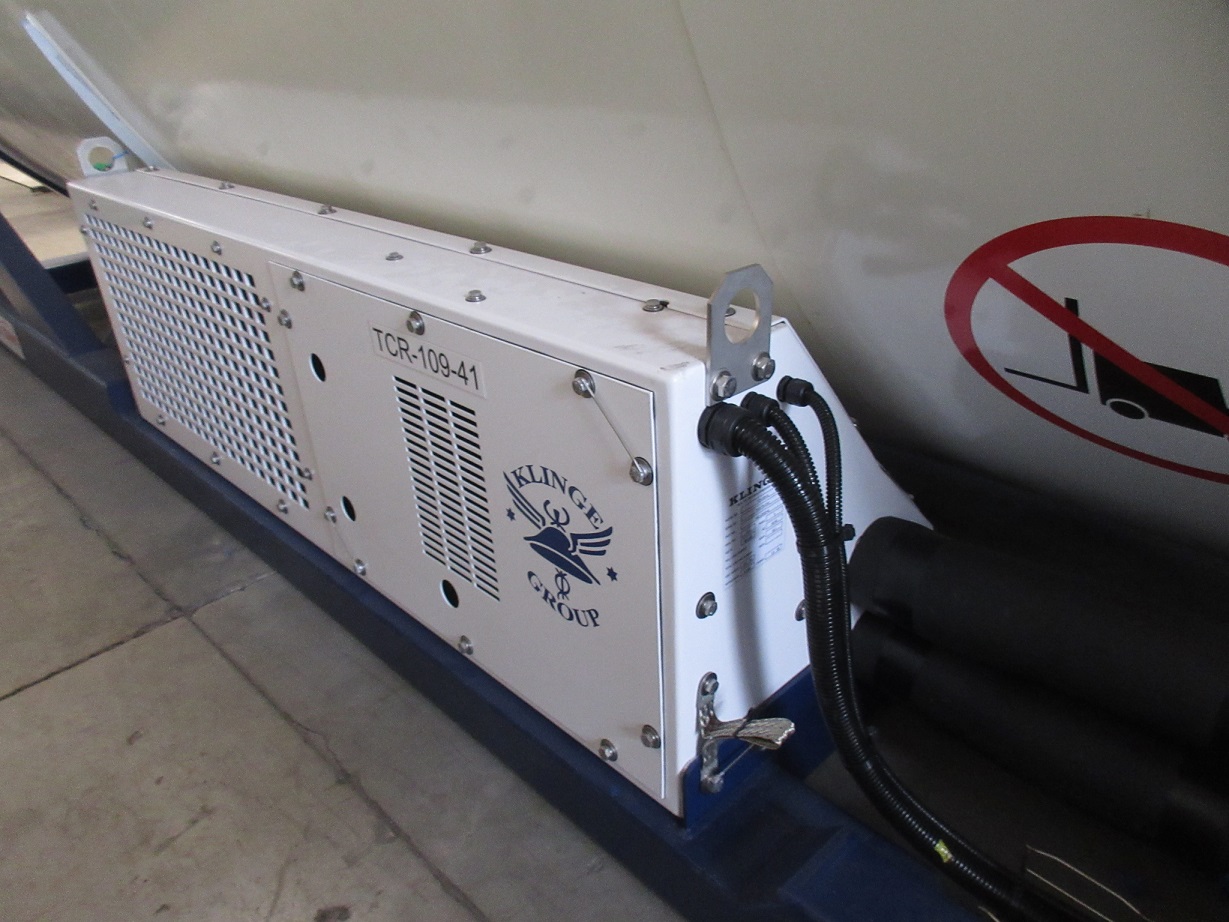

Refrigeration Unit:	KLINGE TCR-109 refrigeration unit, temperature to be maintained at 15-20°C
Type Approvals:	IMDG, CFR49, RID/ ADR), US/DoT, UIC, TIR, CSC, TC
Classification Society:	BV, LR
