35KL Tank Container_Lubiao Container, Tank Container

35KL Tank Container, can add baffles to ensure safety transportation.

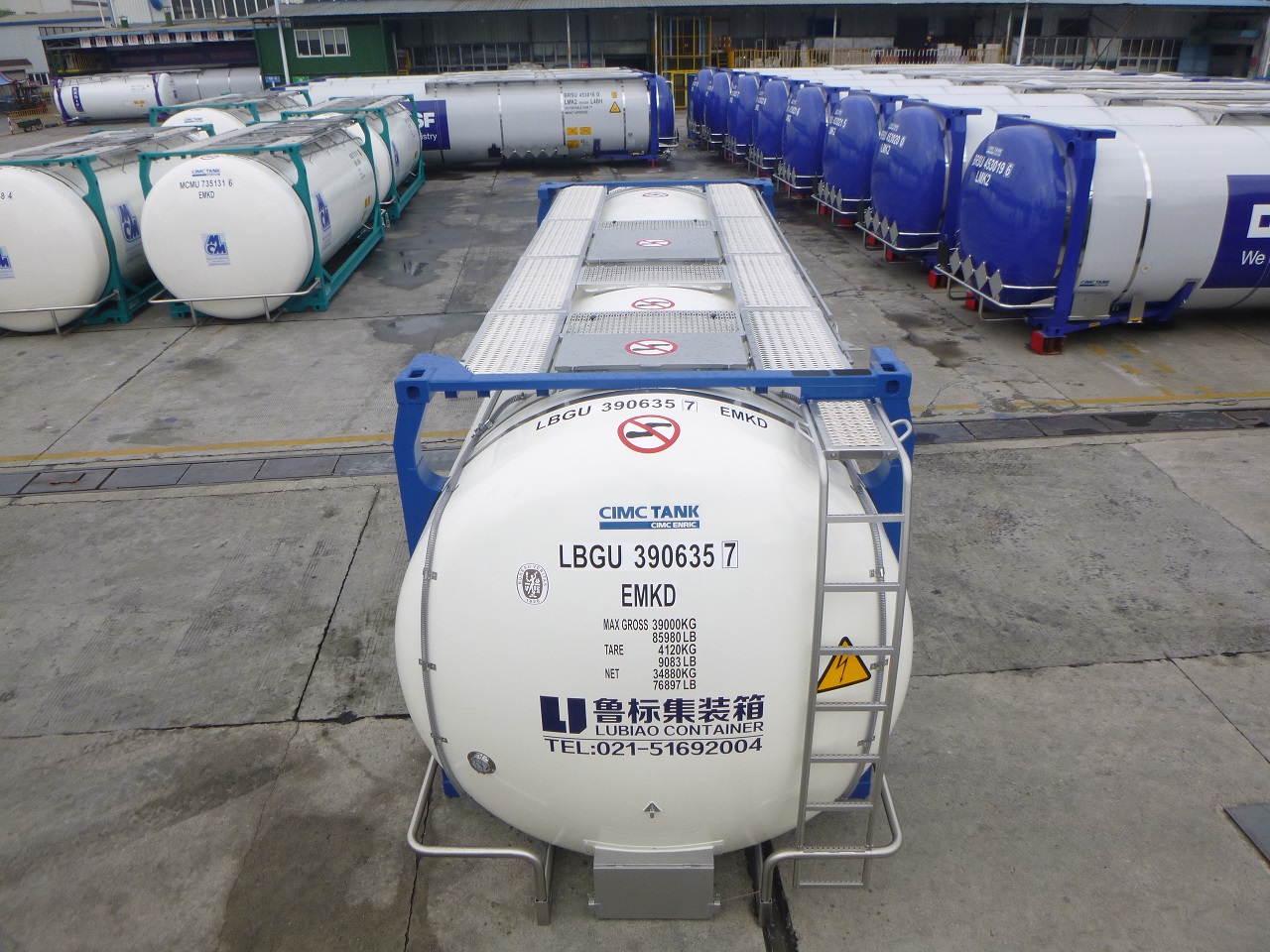

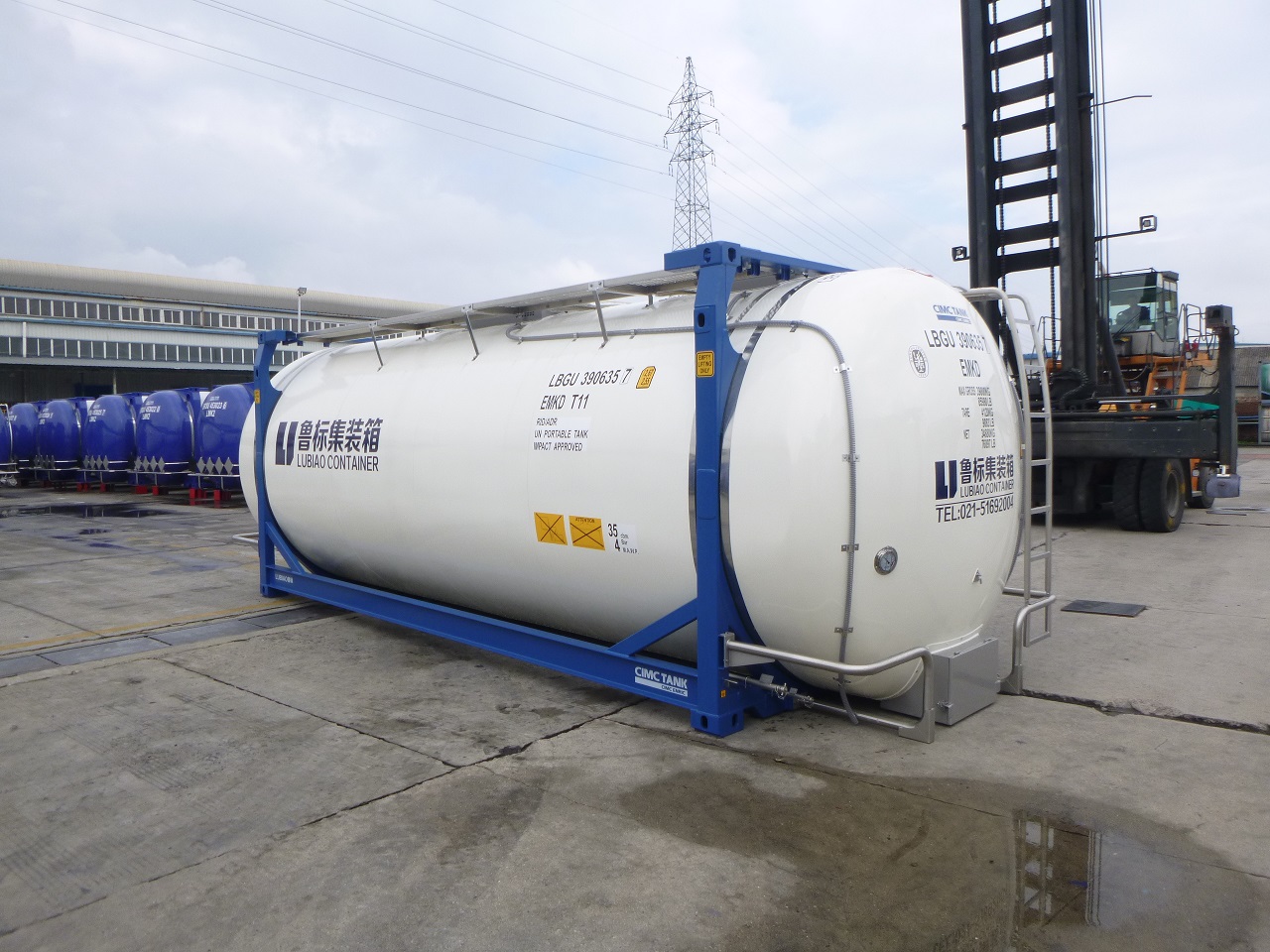

35KL TANK CONTAINER

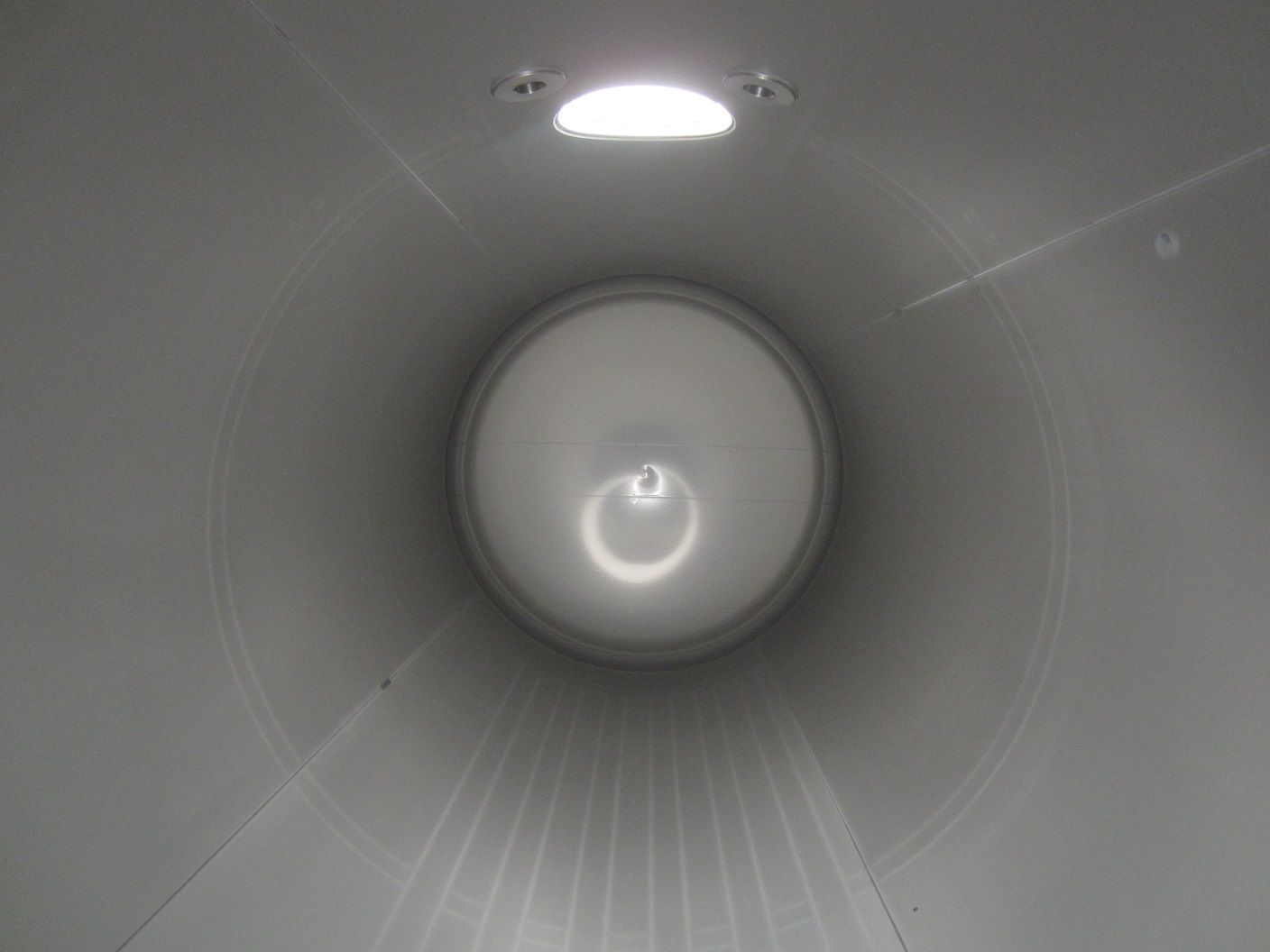

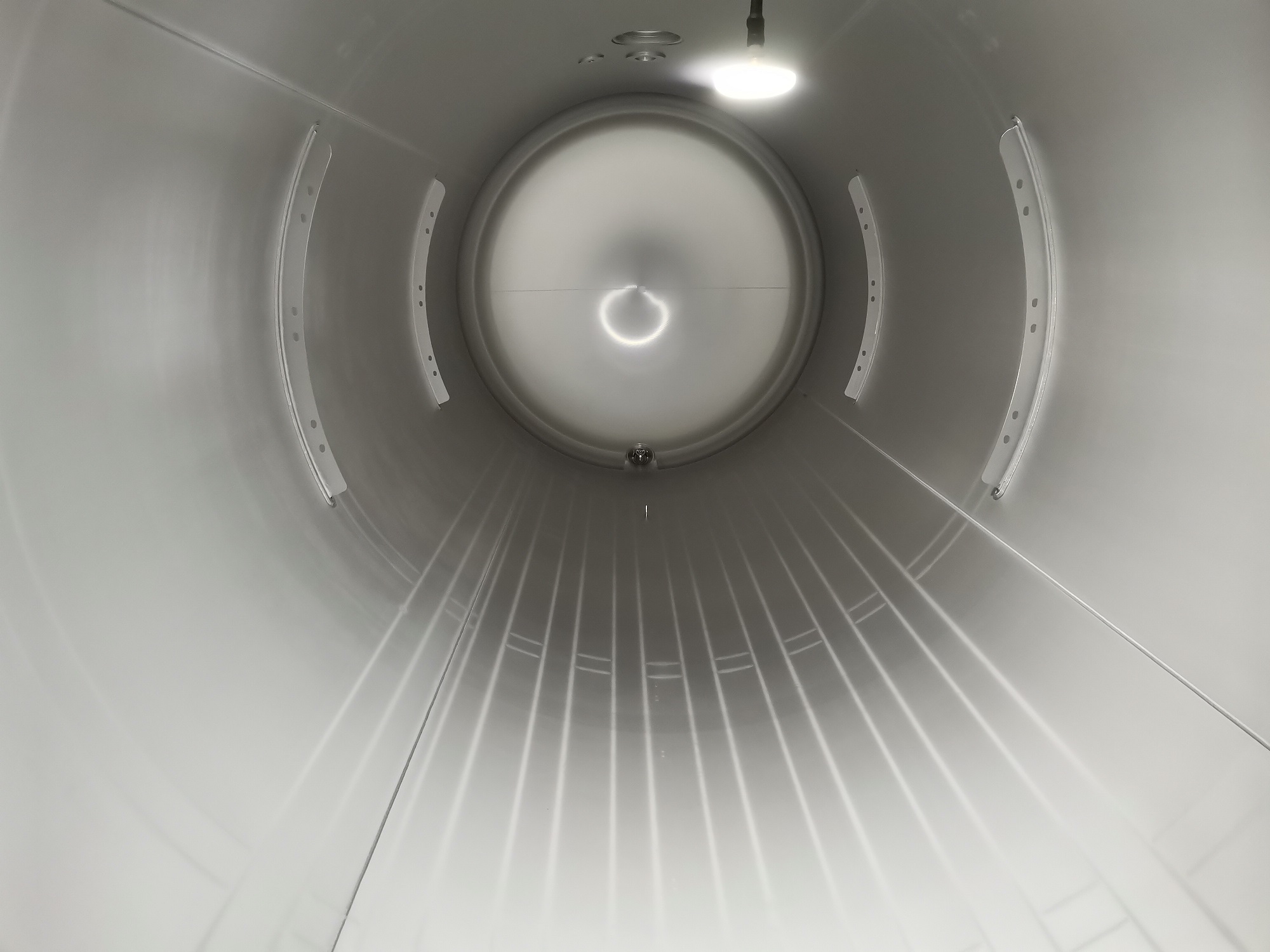

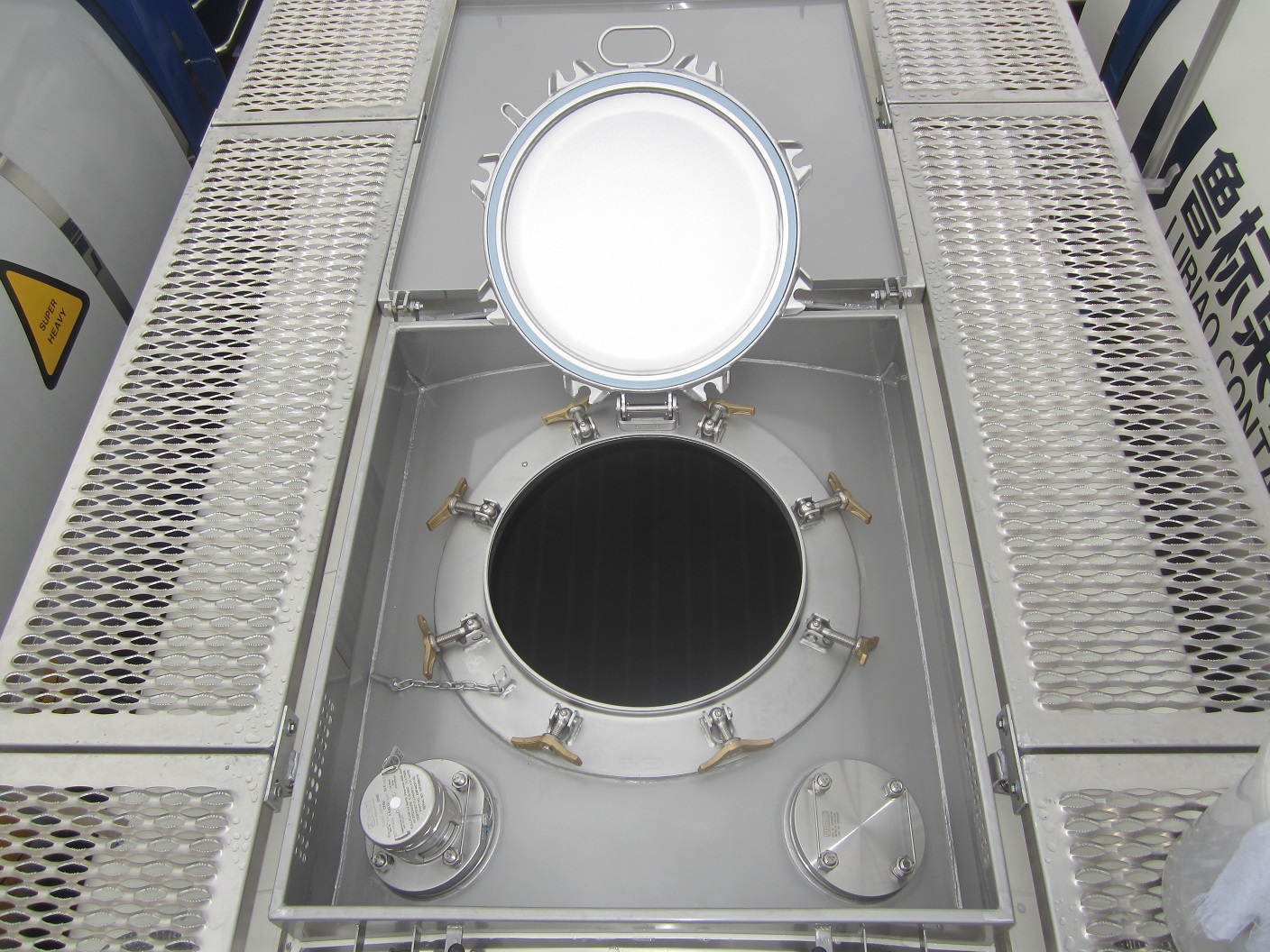

Can add baffles to ensure safety of transportation, also can add one cleaning hole.

Tank Type:	SWAPBODY T11 Tank Container
Tank Size:	L7820m，W2550mm，H2670mm
Capacity:	35,000 litres (-1，+1.5%)
Tare Mass:	4,120 kg (+/-3%)
Max Gross Mass:	39,000 kg
Max Payload:	34,880 kg
Max Allowable Working Pressure:	4 bar
Test Pressure:	6 bar
External Pressure:	0.41 bar
Design Temp.:	-40°C to 130°C
Materials:	SANS 50028-71.4402, =316L，Carbon<=0.03%
Design Code:	ASME VIII Div 1
Type Approvals:	IMDG, CFR49, RID/ ADR), US/DoT, UIC, TIR, CSC, TC
Classification Society:	BV, LR
