SWAPBODY Tank
SWAPBODY Tank

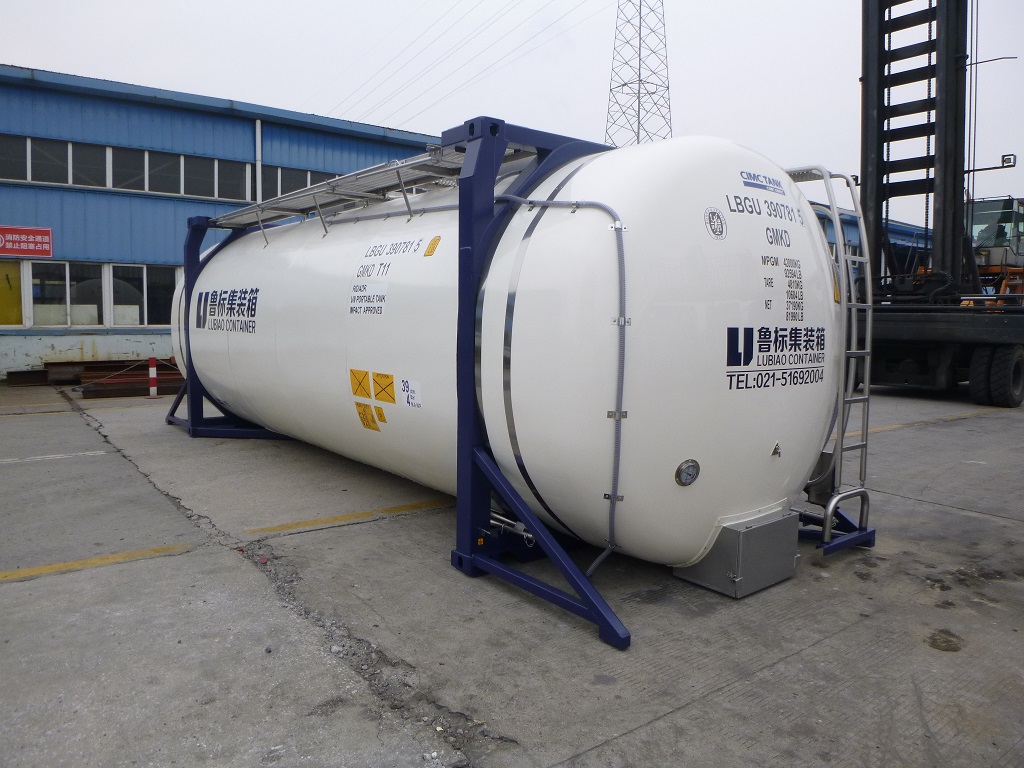

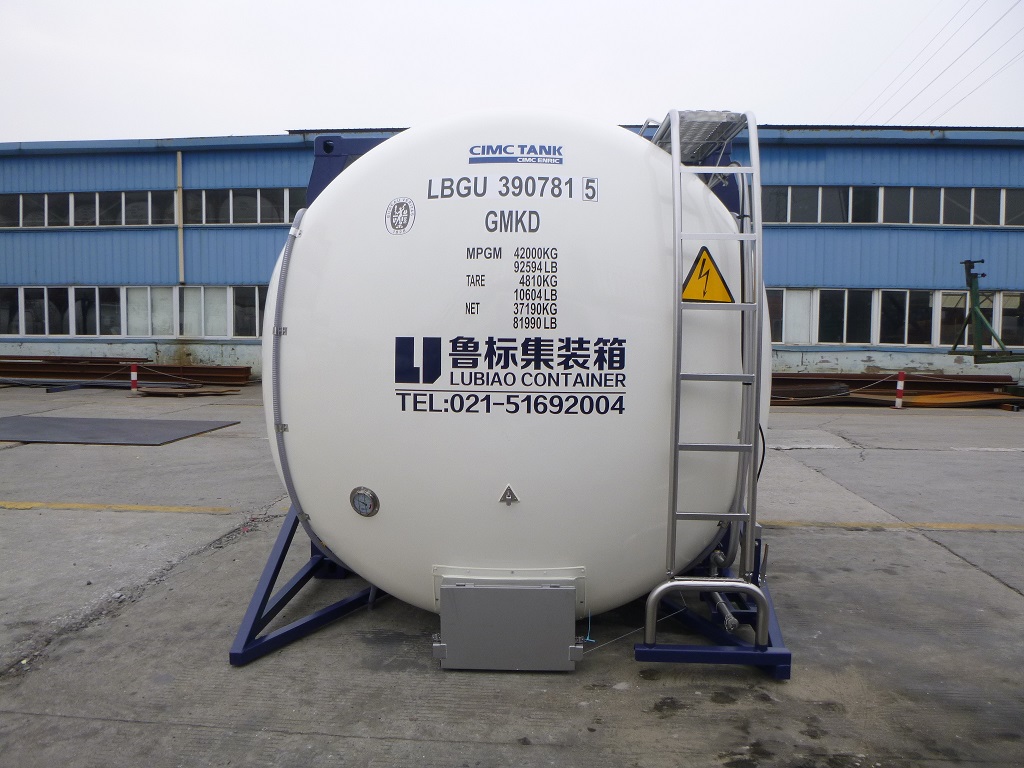

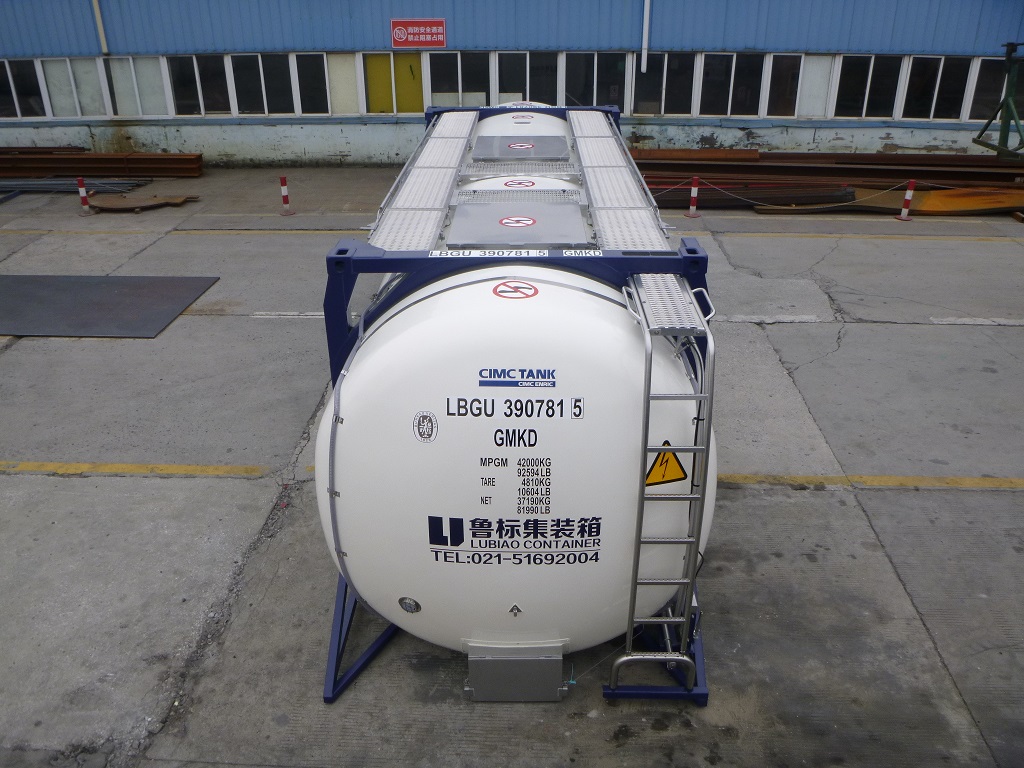

39KL TANK CONTAINER

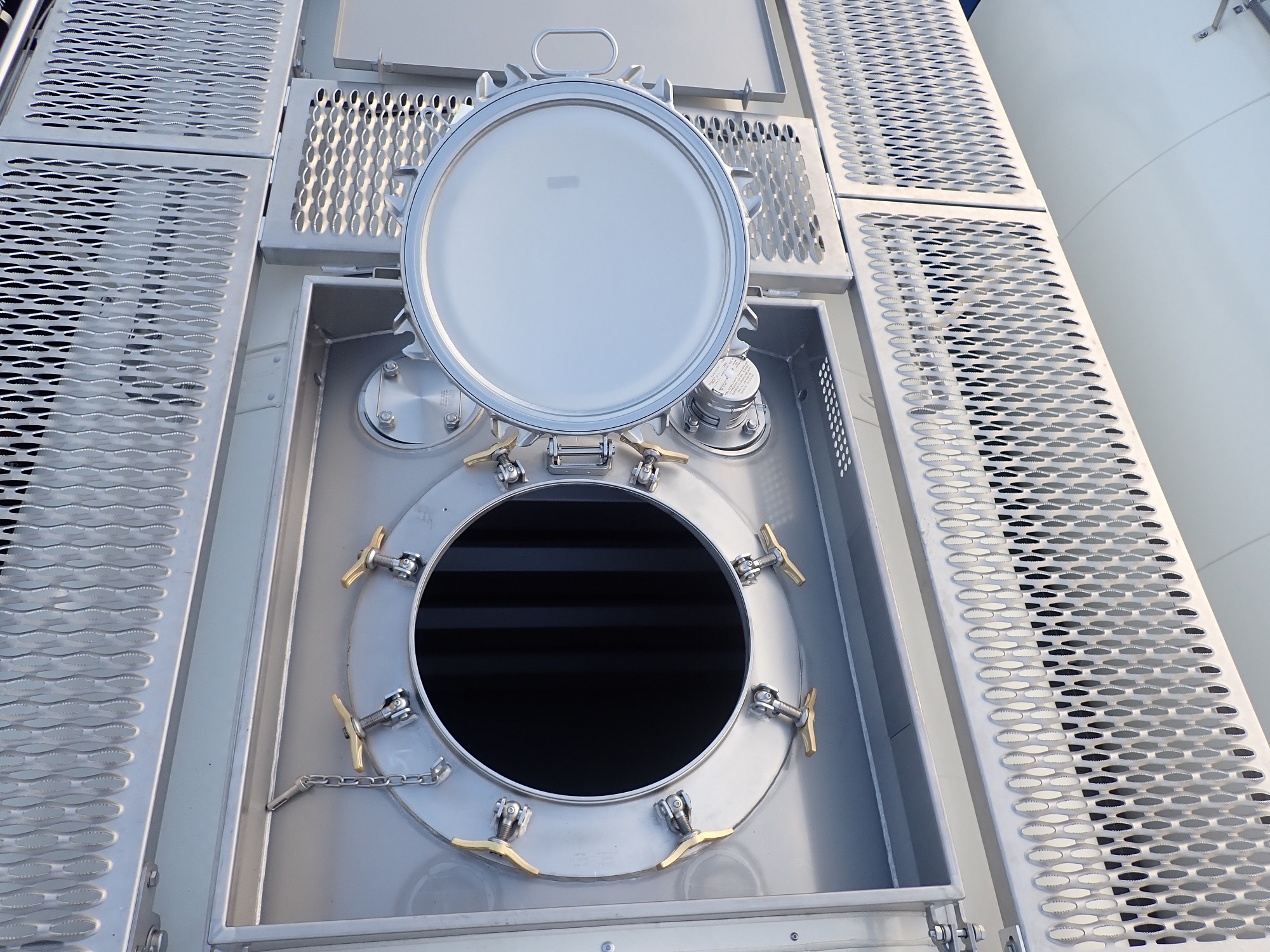

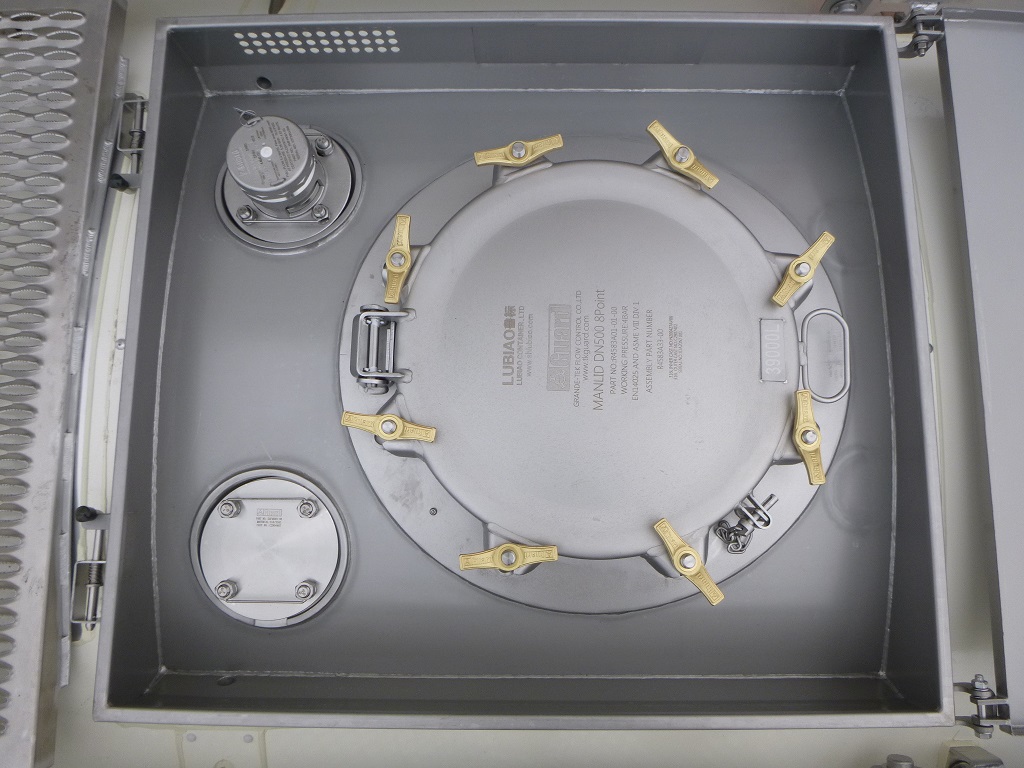

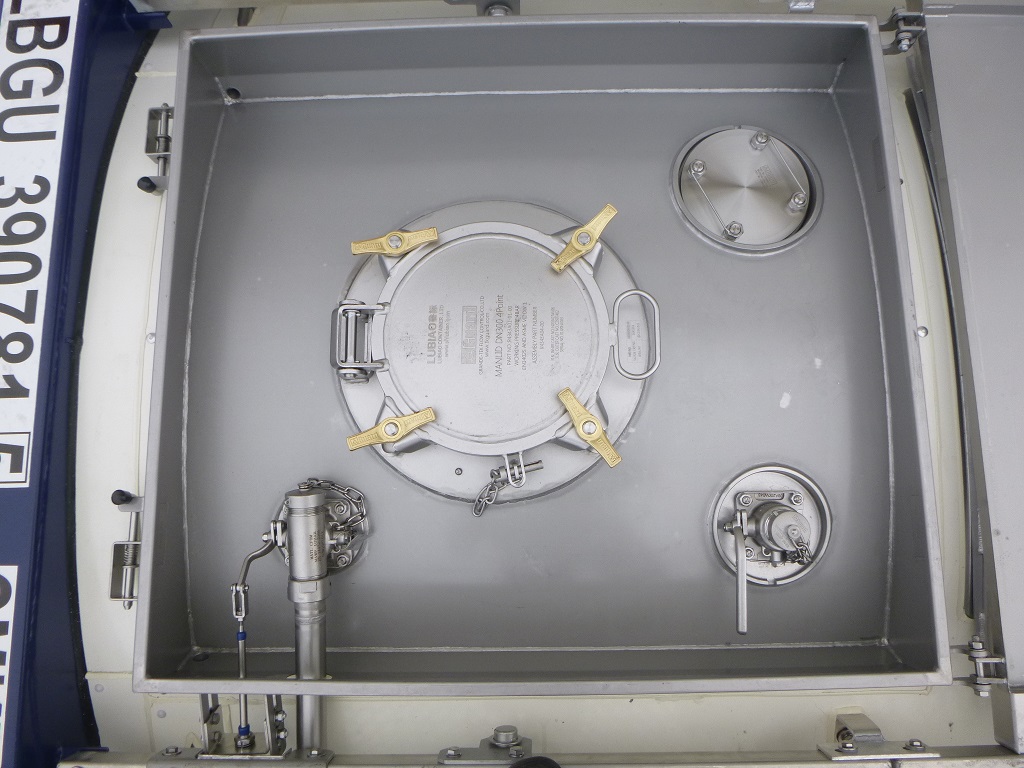

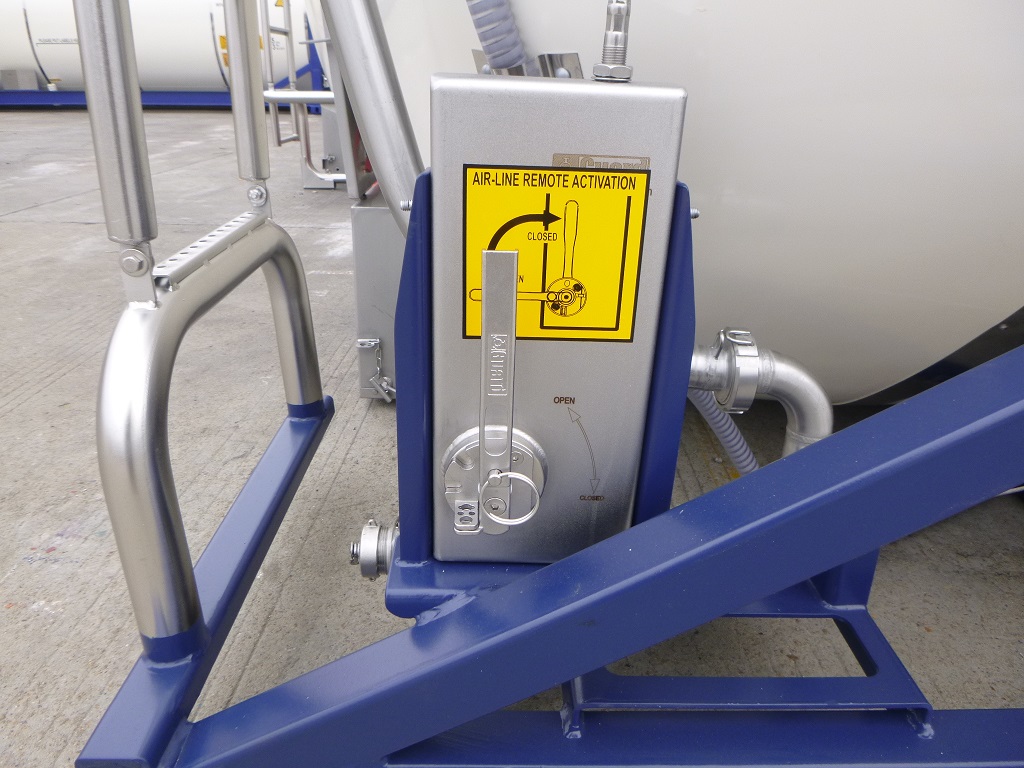

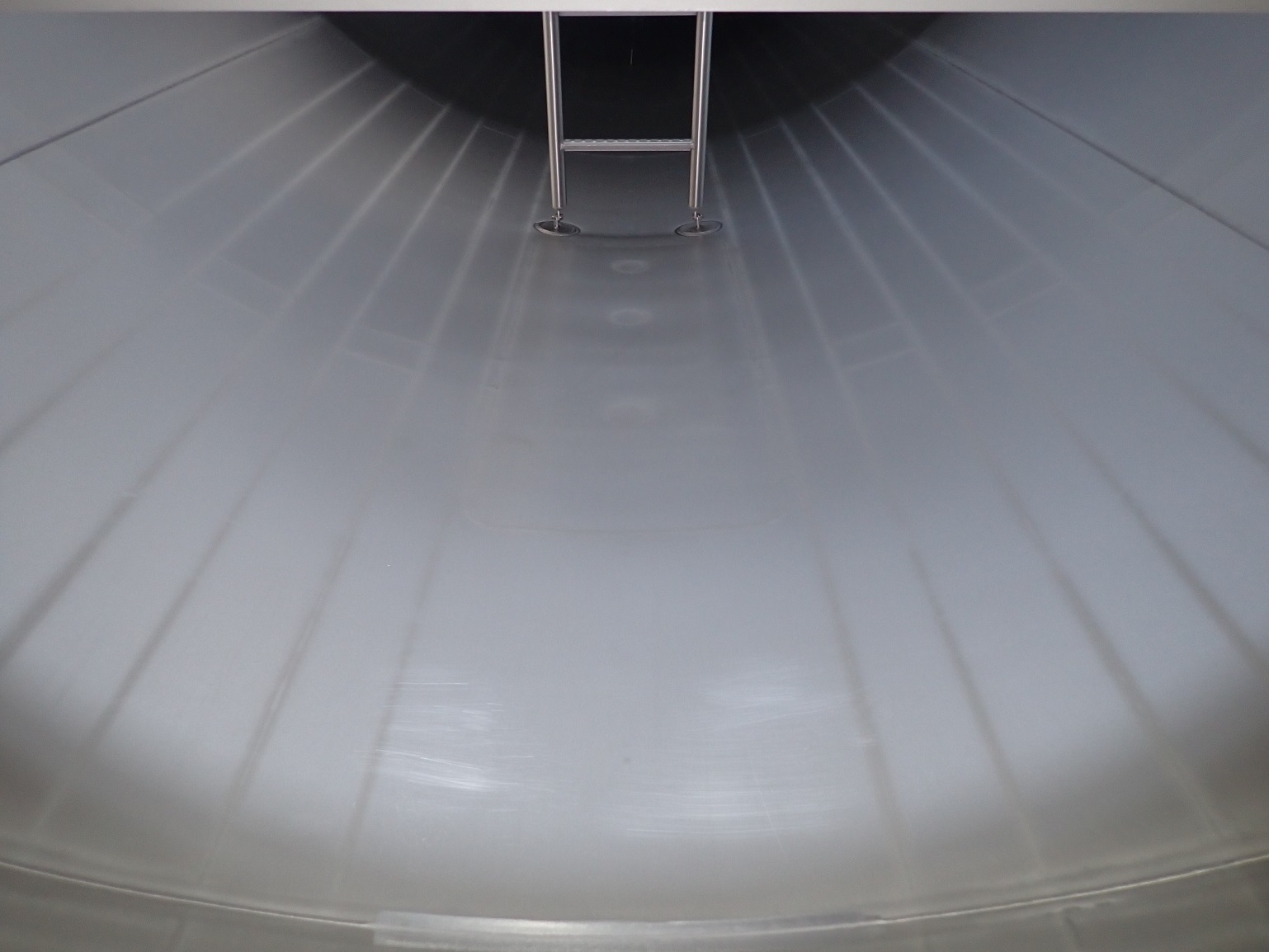

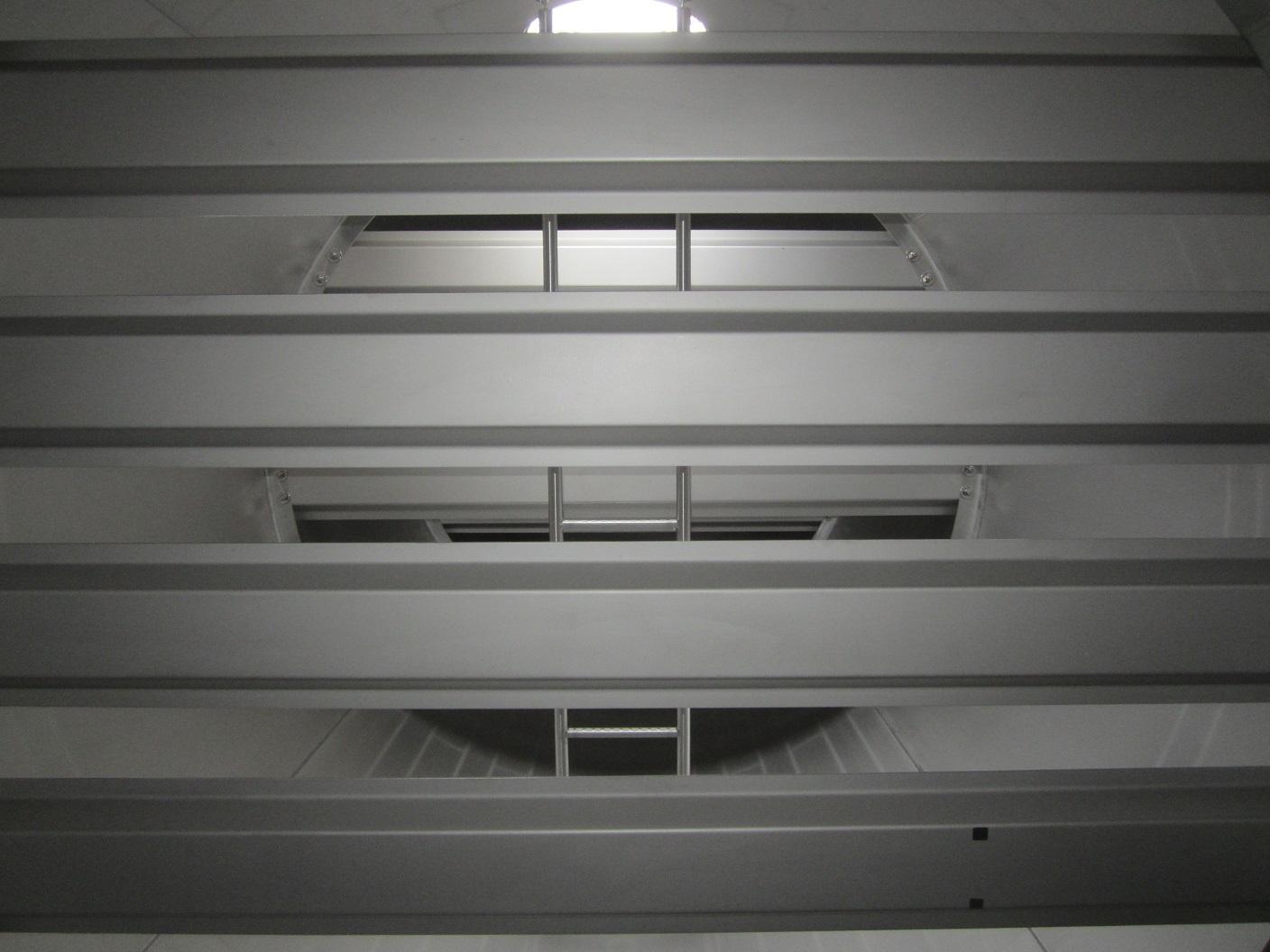

Big capacity, with one clean hole, 3 baffles, Air valve remote control system.
| Tank Type: | Big Capacity SWAPBODY T11 Tank Container |
| Tank Size: | L8450mm，W2550mm，H2670mm |
| Capacity | 39,000 litres (+/-0.75%) |
| Tare Mass: | 4,810 kg (+/-3%) |
| Max Gross Mass: | 42,000 kg |
| Max Payload: | 37,190 kg |
| Max Allowable Working Pressure: | 4 bar |
| Test Pressure: | 6 bar |
| External Pressure: | 0.41 bar |
| Design Temp.: | -40°C to 130°C |
| Materials: | SANS 50028-71.4402, =316L，Carbon<=0.03% |
| Design Code: | ASME VIII Div 1 |
| Type Approvals: | IMDG, CFR49, RID/ ADR), US/DoT, UIC, TIR, CSC, TC |
| Classification Society: | BV, LR |
If you have any inquiry please Call 021-51860678, we will contact with you very soon.
